An Overview of DDL Algorithms in MySQL 8: Enhancing Schema Changes

DBA, MinervaDB, MySQL, MySQL DBA

An Overview of DDL Algorithms in MySQL 8 DDL: Enhancing Schema Changes

Database schema modifications have long been a source of concern for database administrators, particularly in high-traffic production environments where downtime can be costly. Traditional DDL operations required exclusive metadata locks (MDL) that blocked all concurrent access, forcing applications into maintenance windows. MySQL 8 DDL has revolutionized this landscape by introducing advanced DDL (Data Definition Language) algorithms that minimize disruption through sophisticated locking mechanisms and data structure optimizations.

The Evolution of DDL Operations in MySQL

Traditional DDL operations in MySQL employed the COPY algorithm, which required significant resources and resulted in table-level exclusive locks that completely blocked concurrent access. These operations followed a resource-intensive process:

  1. Creating a temporary table with the new schema structure
  2. Acquiring exclusive metadata locks on the original table
  3. Row-by-row data copying from the original to temporary table
  4. Index rebuilding on the temporary table
  5. Atomic table swap and cleanup of the original table

This approach generated substantial I/O overhead, consumed significant buffer pool space, and created replication lagin master-slave configurations. The exclusive MDL locks prevented all DML operations (INSERT, UPDATE, DELETE) during the entire operation duration.

MySQL 8 DDL addresses these challenges through sophisticated algorithms that leverage InnoDB’s MVCC (Multi-Version Concurrency Control) capabilities and online DDL infrastructure. The database engine now intelligently selects algorithms based on operation type, table characteristics, and storage engine capabilities.

Introducing the INSTANT DDL Algorithm

MySQL 8.0.12 marked a significant milestone with the introduction of the INSTANT DDL algorithm, enabling non-blocking schema changes through metadata-only modifications [^1][^2]. This innovation, initially contributed by Tencent Games, operates by modifying the InnoDB data dictionary without touching actual table data.

Technical Mechanism of INSTANT DDL

The INSTANT algorithm achieves its performance through several key technical innovations:

Metadata-Only Changes: INSTANT operations modify only the table’s metadata in the InnoDB data dictionary, avoiding any physical data manipulation. The algorithm updates the table definition stored in mysql.innodb_table_stats and related system tables.

Virtual Column Implementation: When adding columns with default values, INSTANT creates virtual representationsin the metadata. New rows store actual values, while existing rows reference the default through the metadata layer.

Row Format Versioning: InnoDB maintains row format version information within each record, enabling the storage engine to interpret data correctly across different schema versions without requiring data migration.

Locking Behavior in INSTANT Operations

INSTANT DDL operations utilize shared metadata locks (MDL_SHARED_UPGRADABLE) instead of exclusive locks:

  • Brief exclusive lock acquisition only during the final metadata commit phase
  • Concurrent DML operations continue uninterrupted during the operation
  • No blocking of SELECT queries throughout the entire process
  • Minimal lock escalation reduces contention in high-concurrency environments

Supported INSTANT Operations

INSTANT has become the default algorithm in MySQL 8.4 [^3], supporting operations including:

  • Adding columns at any position with or without default values
  • Dropping columns (MySQL 8.0.14+)
  • Renaming columns without data type changes
  • Modifying column default values
  • Adding/dropping virtual generated columns

Background DDL Support and INPLACE Algorithm

MySQL 8 introduces comprehensive background DDL support through the INPLACE algorithm [^4], which performs schema modifications while maintaining concurrent query access through sophisticated locking and buffering mechanisms.

Technical Architecture of INPLACE DDL

The INPLACE algorithm employs several advanced techniques:

Online DDL Log Buffer: InnoDB maintains a temporary log buffer (innodb_online_alter_log_max_size) that captures DML changes occurring during DDL execution. This buffer ensures transactional consistency without blocking concurrent operations.

Progressive Locking Strategy: INPLACE operations use a multi-phase locking approach:

  1. Shared metadata lock during preparation phase
  2. Concurrent DML execution with change logging
  3. Brief exclusive lock for final application of logged changes

Incremental Index Building: For index operations, INPLACE builds new indexes incrementally while maintaining existing index availability, utilizing merge-sort algorithms for efficient key ordering.

INPLACE Operation Categories

INPLACE supports operations requiring limited data restructuring:

  • Index creation/deletion with concurrent DML logging
  • Column data type modifications (widening operations)
  • Table partitioning changes
  • Foreign key constraint modifications
  • Column reordering with data type compatibility

Comprehensive DDL Algorithm Strategy

MySQL 8 employs a hierarchical algorithm selection strategy based on operation complexity and resource requirements [^5][^3]:

Algorithm Selection Hierarchy

  1. INSTANT Algorithm
    • Operations: Adding/dropping columns, modifying defaults
    • Lock Type: MDL_SHARED_UPGRADABLE with brief exclusive phase
    • Resource Usage: Minimal CPU, no I/O overhead
    • Example: ALTER TABLE users ADD COLUMN created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
  2. INPLACE Algorithm
    • Operations: Index modifications, data type changes, partitioning
    • Lock Type: MDL_SHARED_READ with exclusive commit phase
    • Resource Usage: Moderate CPU/I/O, online DDL log buffer
    • Example: ALTER TABLE users ADD INDEX idx_email (email)
  3. COPY Algorithm
    • Operations: Complex schema restructuring, storage engine changes
    • Lock Type: MDL_EXCLUSIVE throughout operation
    • Resource Usage: High CPU/I/O, temporary table creation
    • Example: ALTER TABLE users ENGINE=MyISAM (from InnoDB)

Intelligent Algorithm Selection

MySQL automatically selects the optimal algorithm based on:

  • Operation type compatibility with each algorithm
  • Table size and complexity considerations
  • Available system resources and configuration parameters
  • Concurrent workload patterns and lock contention levels

Performance Benefits and Operational Impact

The advanced DDL algorithms in MySQL 8 deliver substantial technical improvements:

Reduced Lock Contention

Metadata lock contention reduction through:

  • Granular locking strategies that minimize exclusive lock duration
  • Lock-free read operations during most DDL phases
  • Optimized lock escalation patterns reducing deadlock probability

Enhanced I/O Efficiency

I/O optimization techniques include:

  • Zero-copy operations for INSTANT DDL eliminating disk writes
  • Sequential I/O patterns for INPLACE operations improving disk utilization
  • Buffer pool preservation avoiding cache invalidation during schema changes

Memory Management Improvements

Advanced memory utilization through:

  • Online DDL log buffer management with configurable sizing
  • Incremental memory allocation preventing memory spikes
  • MVCC-aware buffer pool usage maintaining read consistency

Advanced Configuration and Tuning

Critical Configuration Parameters

Key parameters for DDL optimization:

-- Online DDL log buffer size (default: 128MB)
SET GLOBAL innodb_online_alter_log_max_size = 1073741824;

-- DDL operation timeout
SET SESSION lock_wait_timeout = 300;

-- Algorithm specification
ALTER TABLE users ADD COLUMN status INT, ALGORITHM=INSTANT;

Monitoring DDL Operations

Performance monitoring queries:

-- Monitor ongoing DDL operations
SELECT * FROM performance_schema.events_stages_current
WHERE EVENT_NAME LIKE 'stage/innodb/alter%';

-- Check metadata lock contention
SELECT * FROM performance_schema.metadata_locks
WHERE OBJECT_TYPE = 'TABLE' AND LOCK_STATUS = 'PENDING';

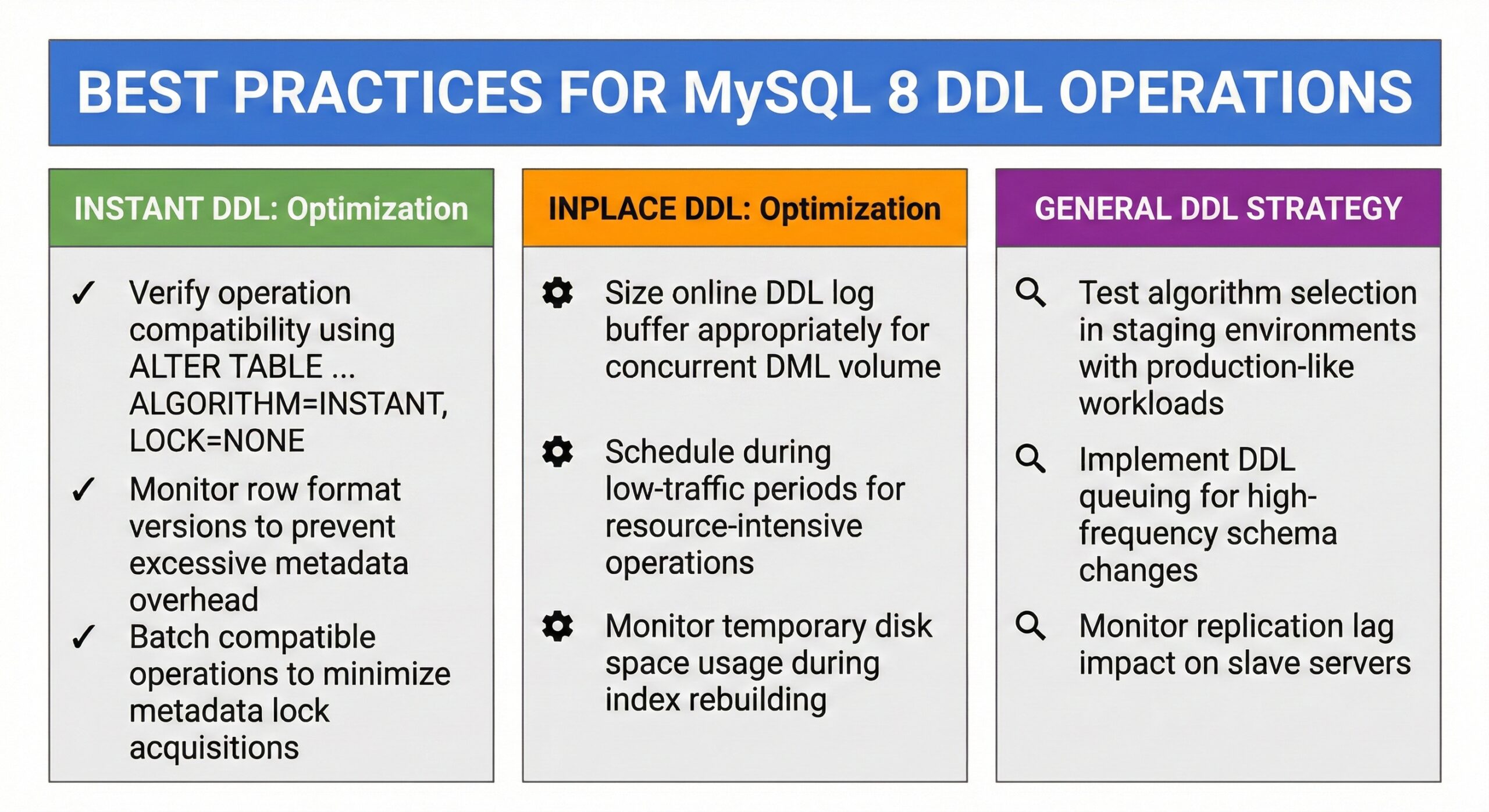

Best Practices for MySQL 8 DDL Operations

Algorithm-Specific Optimization Strategies

INSTANT DDL Best Practices:

  • Verify operation compatibility using ALTER TABLE … ALGORITHM=INSTANT, LOCK=NONE
  • Monitor row format versions to prevent excessive metadata overhead
  • Batch compatible operations to minimize metadata lock acquisitions

INPLACE DDL Optimization:

  • Size online DDL log buffer appropriately for concurrent DML volume
  • Schedule during low-traffic periods for resource-intensive operations
  • Monitor temporary disk space usage during index rebuilding

General DDL Strategy:

  • Test algorithm selection in staging environments with production-like workloads
  • Implement DDL queuing for high-frequency schema changes
  • Monitor replication lag impact on slave servers

Advanced Troubleshooting Techniques

Common issues and solutions:

-- Check DDL algorithm compatibility
EXPLAIN ALTER TABLE users ADD COLUMN new_col INT;

-- Monitor DDL progress
SELECT WORK_COMPLETED, WORK_ESTIMATED
FROM performance_schema.events_stages_current
WHERE EVENT_NAME LIKE 'stage/innodb/alter%';

The Future of Schema Management

MySQL 8’s DDL algorithms represent a paradigm shift toward lock-free schema evolution. The combination of metadata-only modifications, concurrent operation support, and intelligent resource management creates an environment where schema changes integrate seamlessly with continuous deployment pipelines.

These technical improvements enable:

  • Zero-downtime deployments through INSTANT column additions
  • Online index optimization without application interruption
  • Dynamic schema adaptation for microservices architectures
  • Cloud-native scalability with minimal operational overhead

Conclusion

MySQL 8’s advanced DDL algorithms have fundamentally transformed database schema management through sophisticated locking mechanisms, I/O optimization, and concurrent operation support. The technical implementation of INSTANT, INPLACE, and intelligent algorithm selection provides database administrators with unprecedented flexibility in managing schema evolution without compromising application availability or performance.

The metadata-only approach of INSTANT DDL, combined with the concurrent operation capabilities of INPLACE algorithms, establishes MySQL 8 as a leader in modern database schema management, enabling organizations to maintain high availability while supporting rapid development cycles and continuous deployment practices.

[^1]: MySQL Instant DDLs: Fast Schema Changes with INSTANT

[^2]: [MySQL Instant DDLs: Enhancing Schema Changes with INSTANT – minervadb.xyz](https://minervadb.xyz/mastering-mysql-instant-ddls-enhancing-schema-changes-with-instant/#:~:text=In MySQL,Tencent Games.)

[^3]: [MySQL :: MySQL 8.4 Reference Manual :: 17.12.1 Online DDL…](https://dev.mysql.com/doc/refman/8.4/en/innodb-online-ddl-operations.html#:~:text=INSTANT is,where possible.)

[^4]: How MySQL 8 Reduces Contention for Metadata Locks to Improve…

[^5]: [MySQL :: MySQL 8.0 Reference Manual :: 17.12 InnoDB and Online DDL](https://dev.mysql.com/doc/refman/8.0/en/innodb-online-ddl.html#:~:text=Note ALGORITHM%3DINSTANT,as possible.)
