Mastering MySQL Schema Changes with gh-ost: A Complete Implementation Guide

Mastering MySQL Schema Changes with gh-ost: A Complete Implementation Guide

Managing schema changes in MySQL databases with large tables can be a daunting task for database administrators. Traditional methods often result in table locks, downtime, and frustrated users. Enter gh-ost – a revolutionary triggerless online schema change tool that transforms how we handle MySQL database modifications.

What is gh-ost and Why Should You Care?

gh-ost (GitHub’s Online Schema Transposer) is an innovative MySQL schema migration tool developed by GitHub Engineering that enables online schema changes without the traditional drawbacks of trigger-based solutions. Unlike conventional tools that rely on triggers and can cause performance bottlenecks, gh-ost operates as a triggerless solution that minimizes workload on your master database during schema modifications.

The primary advantage? Zero downtime schema changes on production databases, even those containing millions of records.

The Problem with Traditional Schema Change Methods

Most existing online schema change tools, including the widely-used pt-online-schema-change, depend on database triggers to synchronize data between the original table and a temporary shadow table. This approach creates several challenges:

  • Resource competition between queries and triggers
  • Potential locks in production environments
  • Synchronous processing that can impact performance
  • Inability to pause triggers during high load periods

How gh-ost Revolutionizes Schema Changes

The Triggerless Approach

gh-ost eliminates triggers entirely by leveraging MySQL’s binary log (binlog) system. Instead of using triggers to track changes, it acts as a fake replica server, reading DML events directly from the binary logs. This asynchronous approach provides several benefits:

  • Reduced master workload during migrations
  • Better resource management without trigger overhead
  • Flexible execution control with pause/resume capabilities
  • Real-time monitoring of migration progress

Binary Log Requirements

To implement gh-ost successfully, your MySQL server must have specific configurations enabled:

log-bin=mysql-bin
binlog-format=ROW
log-slave-updates=ON

These settings are crucial because gh-ost needs to read binary log events to capture live changes during the migration process.

Step-by-Step gh-ost Implementation

1. Installation Process

Download and install gh-ost from the official GitHub repository:

# Download the latest release
wget https://github.com/github/gh-ost/releases/download/v1.0.45/gh-ost-binary-linux-20180417090238.tar.gz

# Extract the binary
tar -xvf gh-ost-binary-linux-20180417090238.tar.gz

2. Database User Permissions

Create a dedicated MySQL user with appropriate privileges:

GRANT ALTER, CREATE, DELETE, DROP, INDEX, INSERT, LOCK TABLES, SELECT, TRIGGER, UPDATE ON *.* TO 'ghost'@'192.168.33.1';

GRANT SUPER, REPLICATION SLAVE ON *.* TO 'ghost'@'192.168.33.1';

FLUSH PRIVILEGES;

3. Basic Migration Command

Execute a schema change with the following command structure:

./gh-ost \
  --host=localhost \
  --user=root \
  --password='YourPassword' \
  --database=your_database \
  --table=your_table \
  --alter="ADD COLUMN new_column INT NOT NULL DEFAULT '0'" \
  --chunk-size=2000 \
  --max-load=Threads_connected=20 \
  --allow-on-master \
  --execute

Understanding the gh-ost Migration Process

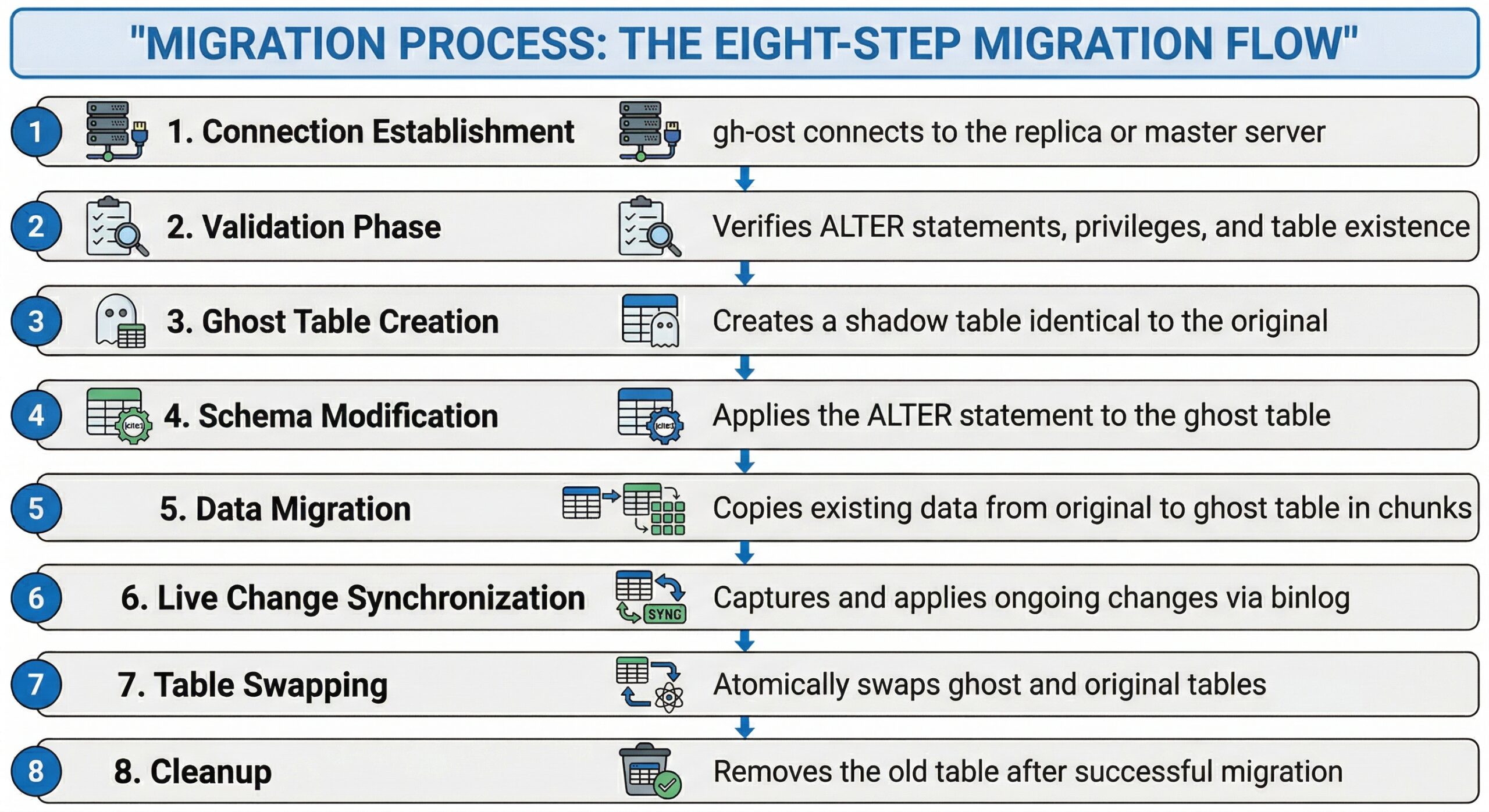

The Eight-Step Migration Flow

  1. Connection Establishment: gh-ost connects to the replica or master server
  2. Validation Phase: Verifies ALTER statements, privileges, and table existence
  3. Ghost Table Creation: Creates a shadow table identical to the original
  4. Schema Modification: Applies the ALTER statement to the ghost table
  5. Data Migration: Copies existing data from original to ghost table in chunks
  6. Live Change Synchronization: Captures and applies ongoing changes via binlog
  7. Table Swapping: Atomically swaps ghost and original tables
  8. Cleanup: Removes the old table after successful migration

Monitoring Migration Progress

gh-ost provides real-time feedback during execution:

Copy: 3991/3991 100.0%; Applied: 0; Backlog: 0/1000; Time: 3s(total), 1s(copy);
streamer: mysql-bin.000003:637475; State: migrating; ETA: due

This output shows:

  • Copy progress as a percentage
  • Applied changes from the binary log
  • Backlog status of pending operations
  • Time metrics for performance monitoring
  • Binary log position for tracking
  • Current state and estimated completion time

Key Advantages of gh-ost

Performance Benefits

  • Minimal master impact during schema changes
  • No trigger overhead reducing CPU and memory usage
  • Configurable chunk sizes for optimal performance tuning
  • Runtime configuration changes without stopping migration

Operational Flexibility

  • Dry-run capability for testing migrations safely
  • Pause and resume functionality during high-traffic periods
  • Load-based throttling to prevent system overload
  • Detailed logging and monitoring for troubleshooting

Important Limitations to Consider

While gh-ost offers significant advantages, be aware of these constraints:

  • No foreign key support – Tables with foreign key relationships cannot be migrated
  • Trigger incompatibility – Tables with existing triggers are not supported
  • Binary log dependency – Requires proper binlog configuration
  • Row-based replication requirement – Statement-based replication won’t work

Best Practices for gh-ost Implementation

Pre-Migration Checklist

  1. Verify binary log settings are correctly configured
  2. Test with dry-run mode before executing actual migrations
  3. Monitor system resources during peak usage periods
  4. Plan migration windows during low-traffic times when possible
  5. Backup critical data before major schema changes

Performance Optimization

  • Adjust chunk sizes based on table size and system capacity
  • Set appropriate load thresholds to prevent system overload
  • Monitor replication lag on slave servers
  • Use verbose mode for detailed progress tracking

Conclusion

gh-ost represents a significant advancement in MySQL schema change management, offering database administrators a powerful tool for maintaining high availability while implementing necessary database modifications. Its triggerless approach, combined with binary log integration, provides a safer and more efficient alternative to traditional schema change methods.

By implementing gh-ost in your MySQL environment, you can achieve zero-downtime schema changes, reduce operational risk, and maintain optimal database performance even during complex migrations. The tool’s flexibility and monitoring capabilities make it an essential addition to any serious MySQL database management toolkit.

Whether you’re managing small applications or enterprise-scale databases, gh-ost’s innovative approach to online schema changes can transform your database maintenance procedures, ensuring your applications remain available while your database evolves to meet changing requirements.
